Drones/ROV

Révolution | DTG3 |  DT640 | Robotnik

MOYENS TECHNIQUES
Révolution

Cas d’usage

Inspection optique & acoustique

d’ouvrage d’art



Emport de systèmes d’imagerie

acoustique 2D et 3D

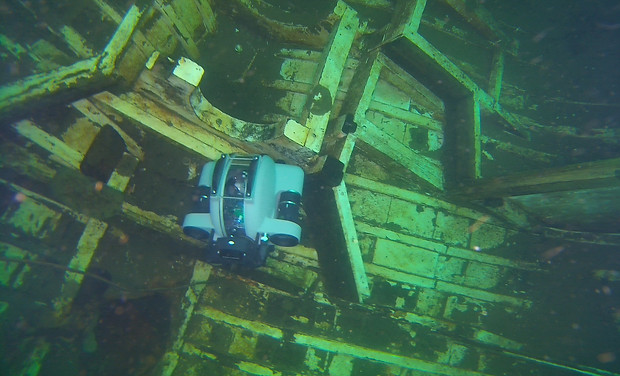

Inspection d’épaves en milieu difficile



Prélèvements

Spécifications

Prof 300m

2 Caméras HD

1 Caméra 4K

8 Projecteurs

Sonar embarqué

USBL (Géolocalisation)

Manipulateur multifonctions

27 kg

Emport jusqu’à 9Kg

Cas d’usage

Inspection optique d’ouvrage d’art



Inspection en milieu confiné

(Vantellerie et canalisations)



Grappinage en milieu off-shore

Inspection d’épaves pour le compte d’experts judiciaires

Spécifications

Prof 200 m

Caméras UHD

4 Projecteurs

Pointeurs laser

Porte outils multifonctions évolutif

Compact <> 325mm

Vidéo live compatible visio

DTG3
DT640

Cas d’usage

Exploration de galeries
Canalisations sèches
Autres souterrains émergés
Accès aux environnements toxiques

Spécifications

Dimensions 720 x 614 x 416 mm
Weight 65 Kg
Load capacity 65 Kg
Speed 3 m/s
Ambient Indoor / Outdoor
Autonomy 10 h continuous motion
Batteries LiFePO,15Ah@48V
Traction svstem 4 wheels
Traction motors 4x 500 W brushless servomotors
Temperature range 0° to +50°C
Max. slope 80 %
Controller Open architecture ROS
Integrated PC with Linux
Communication WiFi 802.11n
Connectivity Internal: USB, RS232 and GPIO
External: USB. RJ45.12 VDC and battery

Cas d’usage

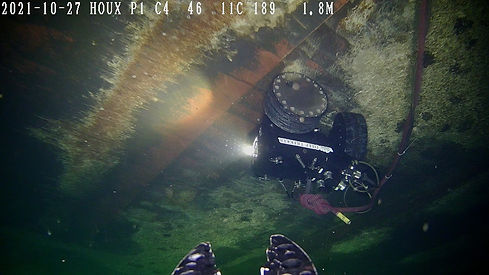

Inspection de coques
surfaces métalliques grâces à ses roues magnétiques

Spécifications

Width: 406 MM (13")
Height: 228 MM (9")
Length: 710 MM (27.95")
Weight (in air): 16.6 KG (36.59 LB)
Material: Stainless Steel, Aluminum, High Strengh Acrylic
Depth Rating: 50 M (164 FT)
Wheels: Patented Magnetic 2WD
Operating Temp: -5°C to 40°C (23°F - 104°F)
Speed: 12m / minute
Turn Radius : 0 mm (O")
Warranty: 1 Year - Parts and Labor (optional 2-3 yrs)



System Voltage: 19.2 VDC
Battery Run Time: Up to 8 Hours
Battery Recharge : 1.5 Hours
Sensors: Incline, Roll, Leak, Camera Pan/Tilt

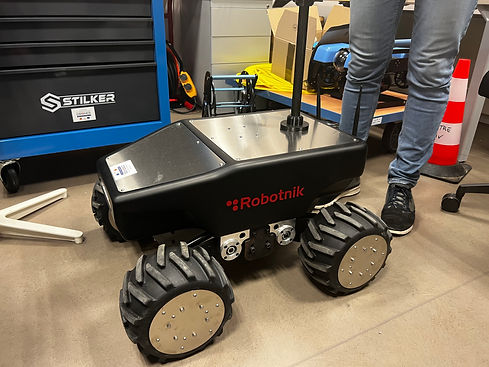

Robotnik
